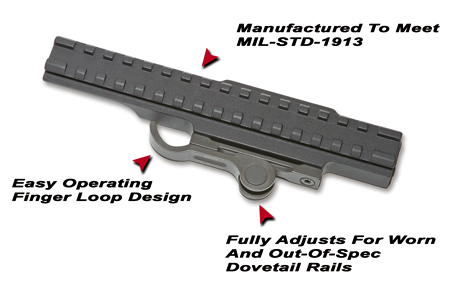

The Accucam Scout Length Mounting Base was designed to mount easily onto the integral rail of the AR15/M16 flat top receiver and interface with our MAD or both of our A2 Style BUIS flip-up rear sights. Manufactured to MIL-SPEC-1913, the Accucam Scout Length Mounting Base raises the line of sight by 1/2-inch, offering a proper cheek weld when optical devices are attached. The quick detachable scope mount rail extends two inches beyond the end of the receiver and clears the M4 forearm.

It was developed to accommodate "scout" type scopes, long body scope tubes, and night vision compatible red dot sights with night vision monoculars mounted to their rear. Once the optic is mounted, the integrated Accucam Quick Detach Lever System provides the shooter with the ability to quickly remove the scope in order to utilize other optics as the mission may require, and have the confidence of 1/2 MOA repeatability upon re-installation.

As with all GG&G products, the QD Scout Rail is designed and manufactured to meet the rigors of combat and professional use. The Accucam Scout Length Mounting Base is manufactured from solid billet 6061 T6 aluminum alloy and has a Type III hard coat anodized matte black mil-spec finish. All edges have been dehorned to protect the operator. The base can be quickly installed on a dovetail rail in seconds by rotating the Accucam Cam Lever to the locked position. It can then be quickly removed by rotating the Accucam Cam Lever to the unlocked position. Unlike many quick detachable scope mounts, it is fully adjustable to fit Weaver and MIL-STD 1913 dovetails. The patent pending design allows you to adjust the tension to accommodate out of spec or worn dovetails. It is not recommended for .50 BMG or lightweight machine guns.

In tests, the Accucam Locking Lever System has shown to be repeatable to 1/2 MOA. The unique finger loop lever is easily operated, even with a gloved hand, and the rounded design is ergonomic and virtually snag proof. The Accucam mechanism is manufactured from solid billet 4140 steel and manganese phosphated matte black per mil-spec.

These two GG&G optical mounting rails were designed to mount easily over the integral rails of the AR15/M16 flat top receiver and work in conjunction with any of our back up iron sights. As these rail mounting brackets raise the line of sight by 1/2 inch, they offer a proper cheek weld when optical devices are attached. In addition, they serve to protect the flat top receiver's integral rails from the damaging wear associated with lever type quick-release mounts, especially those without buffer pads.

The GG&G Scout Rail extends two inches beyond the upper reciever and cantilevers over the handuards including the M4 forearm. It was developed to accommodate long-eye-relief "scout"-type scopes and also Aimpoint red dot sights with night vision monoculars mounted to their rear.

The Standard Rail is employed mainly as a riser for conventional optical sights. When mounted with a GG&G back up iron sight, it is flush with the end of the receiver.

Each scope mount rail is manufactured from billet 6061 T6 aluminum alloy, black Type III hard-coat anodized per Mil-Spec, and meet MIL-STD-1913. These rail mounting systems lock onto the flat top receiver by means of a full locking side bar and two round head socket head screws. This provides both a positive and perfectly aligned lock-up even on well-worn receiver rails. The socket head wrench required for installation is included.

Both the Standard and Scout length mounting rails are manufactured in the USA at our Tucson, Arizona factory. Because these AR-15 and M-4 rail mounting systems are used in combat situations, they are designed and tested extensively before they are sold.

The Super Charging Handle (SCH®) is 3D machined from a solid block of aircraft grade 7075-T6 aluminum. Its ambidextrous design allows for seamless operation from either side of the weapon. The levers are dual contoured similar to that of the charging handle of an M14, where not only the x-axis but also the y-axis receive radius cuts. The handling surface of the lever is also checkered, adding a textured grip aiding to the use when operating with gloves. The heightened rear lip of the SCH aids in mitigating gas blow back to the shooter when shooting with short barreled and suppressed weapon systems. All parts are then Type 3 Hardcoat anodized and are available in black and DDC (Desert Dirt Color).
